The Evervue SP Mirror Waterproof HDTV is a complete mirror when turned off and a high definition television when turned on. Combined with our highest waterproof IPX rating and its fog free tempered mirror glass front, this television integrates the best in elegance and safety while enhancing any bathroom décor.
Its double use of TV or mirror sets it apart from our other models, this along with its external speakers and full mirror glass front are the main differences between the SP and BN model. The included external waterproof Splash speakers and waterproof Wave remote control are standard with each SP HDTV. No matter what your bathroom looks like, the SP HDTV guarantees a luxurious mirror finished look that you can enjoy for many years to come!
QUALITY, RELIABILITY, AND DURABILITY
With the Evervue SP HDTV you are guaranteed excellent picture quality without the sacrificing of style and design. All Evervue SP HDTV’s are equipped with a high quality, high brightness LCD screen that provides with excellent picture quality that you can enjoy for many, many years. The built in digital multi language tuner allows you to view all available channels in High Definition.
The Evervue SP models are also great for commercial installations. Already installed in many hotels and apartment complexes worldwide. Our waterproof HDTV’s have also been featured on both the HGTV and DIY network. You may view a list of commercial projects on our website. All Evervue HDTV’s come standard with a 1 year warranty and extended warranty programs are available upon request.
INSTALLATION
Installation has never been this easy, complete with a rust proof back box for recessed mount, simply slide the TV into the back box and the glass closes against the wall (tiles) providing a seamless, lavish finish. Complete the process by sealing the glass to the wall with silicon glue and you are done! The Evervue SP HDTV comes standard with all the inputs you will need such as HDMI, RCA and RF-cable (USA models also come with a Component input.)
SP SERIES GALLERY
INSTALLATION INFORMATION
METRIC SIZES MILLIMETERS / US STANDARD SIZES INCHES
| Bathroom TV | Code | SP 154 | SP 185 | SP 220 | SP 320 |
|---|---|---|---|---|---|
| Screen Size | A | 15.4" | 18.5" | 22" | 32" |
| TV Length | B | 460mm / 18.1" | 557mm / 22" | 600mm / 23.6" | 950mm / 37.4" |
| TV Height | C | 340mm / 13.4" | 380mm / 15" | 410mm / 16.7" | 600mm / 23.6" |
| TV Depth | D | 45mm / 1.8" | 51mm / 2" | 51mm / 2" | 86mm / 3.3" |
| Wall Box Length | E | 423mm / 16.6" | 518mm / 20.4" | 590mm / 23.2" | 904mm / 35.6" |
| Wall Box Height | F | 302mm / 11.9" | 342mm / 13.4" | 395mm / 15.6" | 553mm / 22" |
| Wall Box Depth | G | 45mm / 1.8" | 45mm / 1.8" | 45mm / 1.8" | 83mm / 3.3" |
SPECIFICATIONS
| Bathroom TV | SP 154 | SP 185 | SP 220 | SP 320 |
|---|---|---|---|---|
| Resolution | 1280 X 800 | 1366 x 768 | ||
| Source Resolution | 720P | |||
| Aspect Ratio | 16:9 WXGA | |||
| Luminance of White | 400 cd / m2 | 450 cd / m2 | ||
| Display Colors | 16.7M | |||
| Active Display Size | 330 x 208 mm | 409 x 232 mm | 473 x 296 mm | 697 x 392 mm |
| View Angle Horizontal | 160 degrees | |||
| View Angle Vertical | 140 degrees | |||
| Material TV housing | Powder coated aluminum | |||
| Material Front | Hardened mirror glass | |||
| IP Rating | IPX7 | |||
| Speakers | External Mylar Speakers | |||
| Inputs | RF, RCA, HDMI, Component (ATSC only), Power | |||
| Outputs | Audio (left and right) | |||
| Tuner | PAL DVB - T / PAL DMB - T / NTSC - ATSC | |||
| Heated and Fog free screen | Yes, heated, fog free screen. | |||
| Power Supply | 12VDC, 4.0 amp | 100 - 240 VAC | ||
| Net Weight | 7 KG / 15.4 LBS | 9 KG / 19.8 LBS | 11.2 KG / 24.6 LBS | 25 KG / 55 LBS |
Copyright ©Evervue. Information is subject to change without prior notification.
ACCESSORIES AVAILABLE FOR THE EVERVUE SP SERIES
ANDROID TV
Android TV can be connected to your bathroom TV with a LAN cable or wirelessly through your Wi-Fi network. Your Android box can be installed behind the TV or in another room and controlled remotely from the IR receiver built inside the TV. You can access all functions and capabilities through our waterproof Wave remote control or optional commercial-grade stainless steel keyboard.
- How It Works... (click here)
-
ANDROID TV ON YOUR EVERVUE BATHROOM TV & MIRRORVUE
Imagine if you could browse the internet, watch the latest movies in HD, check Facebook, Twitter and email, play Angry Birds, even read your eBooks all from the comfort of your bathtub! And there is so much more: Download Apps, watch live internet TV and Radio, Movies, YouTube and chat with your friends. Everything you do on your Android phone, you can now do on a large screen Evervue TV.All of our products: Evervue bathroom TV, MirrorVue, DecoVue and Spavue can now be optionally equipped with an Android TV (2.3 version) offering you so many additional functionalities. It can transform your bathroom or Mirror TV into one stop, complete media center. If you already have a Google Android account, your bathroom TV will automatically sync the information you have on your phone, so you will never miss a thing. Also, the Android TV can be used by different user accounts, and if you install a SD card, you can even download files and share information.
HOW DOES IT WORK?
- The Evervue Android TV connects conveniently on your Wi-Fi network wirelessly, but can also be connected with a LAN cable.
- The Android TV box can easily be controlled remotely from the IR receiver built inside the TV, eliminating any visible wires in your bathroom for the Android TV. You can install the Android box behind the TV, or even in another room with the included 15' (5 meter) IR extender cable.
- The waterproof remote control has full control capabilities and can access all functions. You can switch conveniently between the regular TV functionalities, the internet and the Android applications All from your included Wave remote control.
- The size of Android TV Box (Height x Length x Thickness) : 125mm x 125mm x 28mm / 4.9" x 4.9" x 1.1"
Click image to enlarge
ANDROID TV ACCESSORIES:
KB-80 STAINLESS STEEL KEYBOARD WITH BUILT IN MOUSE PAD.
This recessed mount keyboard can be installed anywhere you like. Strong stainless weatherproof construction. Connecting a keyboard to your Evervue Android TV will give you better access to the many applications you can use.
For example typing email messages.
Size (Width x Length) : 400 mm x 125mm / 15.75" x 4.9"
KB-40 PORTABLE ANDROID KEYBOARD
Size (Width x Length) : 149mm x 100mm / 5.9" x 3.9"
EVERVUE SPLASH SPEAKERS
Feel free to splash around with our newly designed Evervue Splash Speakers series. These water resistance speakers provide crisp, high-quality sound and are perfect for those high moisture areas where no conventional speaker dares to go.
Our Evervue Splash speakers provide high quality audio in any bathroom.
The Mylar technology guarantees excellent audio quality in any bathroom or anywhere moisture or water splashes are an issue.
EVERVUE PREMIUM SPEAKERS
Enhance your Evervue experience and enjoy concert hall audio quality with our Made in USA, Evervue Splash Premium Speakers. With our Splash Premium Speakers you can add an extra dimension to your Evervue bathroom experience.
The speakers can be recessed mounted and come standard with a stylish white grille front and a 20’ (6 meters) premium audio cable. The premium splash speakers are compatible with all Evervue TV’s.
EVERVUE WAVE REMOTE CONTROL
The Evervue Wave is a universal waterproof remote control with learning functions. The wave controller can be used with our Evervue TV’s as well as various electronics.
Simply follow the instructions in our manual to program the Wave remote control.

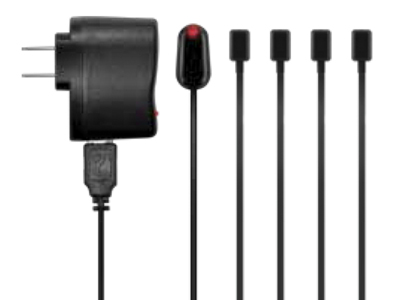

IR REPEATER
The Evervue IR-30 Repeater allows you to connect a Satellite Box, Decoder Box, DVD player and Blue Ray Player to your bathroom TV. Access the same functionalities as a regular TV while concealing all your extra devices.
WIRELESS FULL HDMI
SP bathroom TV can be equipped with a wireless, full HD device that delivers 1080i resolution without cables. The wireless receiver can be mounted behind your mirror, out of sight so you can install your SP bathroom TV anywhere you like.
MB-30 MEDIA OUTLET
The Media Outlet MB-30 provides you with access to the HDMI, USB, Network, VGA, AV/Component of your SP bathroom TV. The Media Outlet MB-30 can be recessed installed in the closet or wall.
BUY AN EVERVUE YOUR WAY!
Order Your Evervue Bathroom TV direct from us or from a Local Authorized Dealer. Every day more and more retailers and interior designers around the world are signing up to become an authorized dealer with a showroom, so that You can Experience the Evervue live.
If you are an interior designer, architect, or retailer with a showroom or installation services and you want to apply for a Evervue dealership in your area, please click here for more information.
Or visit our company showrooms located in Boca Raton, Florida, USA, in Shau Kei Wan, Hong Kong, in Shekou, Shenzhen, China and in Kalmthout, Belgium.
